Automatic Chicken Chain Feeding Laying Box Poultry Equipment for Breeder Chicken
from
$200.00
Ex Tax: $200.00
- Stock: In Stock
- Brand: Raisetech Co., Ltd.
- Model: CncROzHPXNpg13595
- Weight: 1.00
- SKU: CncROzHPXNpg13595
$2,799.00
Ex Tax:$2,799.00
$450.00
Ex Tax:$450.00
Basic Info.
Model NO.
RST-BBF
Type
Breeding
Tiers
1 Tier
Material
Plastic
Usage
Chicken
Certification
CE,Is045001: 2018
After-Sale Service
24 Months
User
Chicken/Broiler/Breeder/Layer
Usage Scenario
Farm/Breeding Company
Length
50-140m
Width
8-15m
High
2.5-3.5m
Transport Package
Oackage
Specification
steel, hot-dip galvanizing
Trademark
Raisetech
Origin
China
HS Code
8436290000
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 100.00cm
Package Gross Weight
50.000kg
Product Description

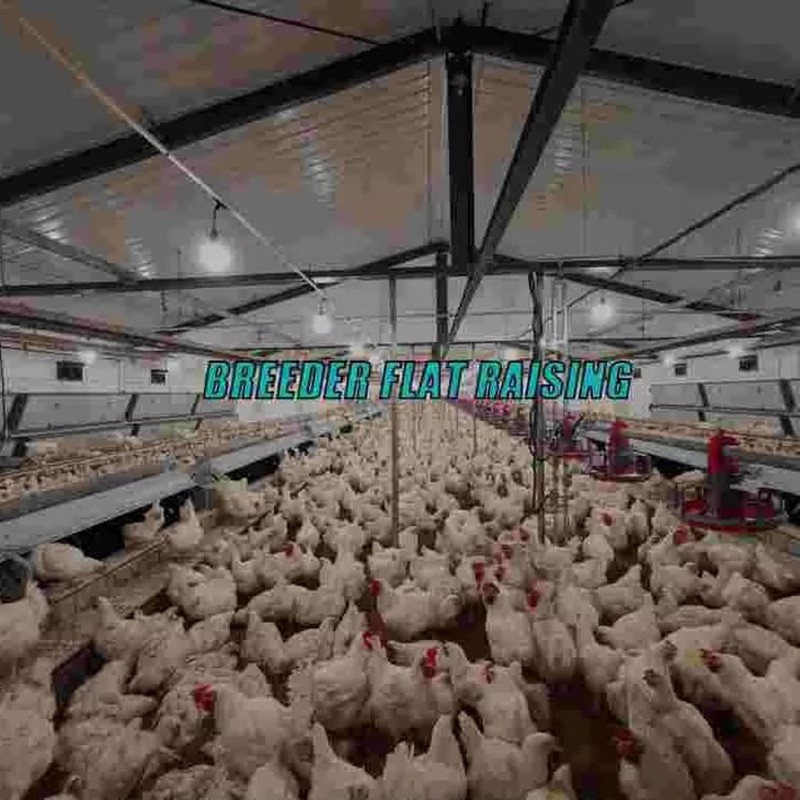

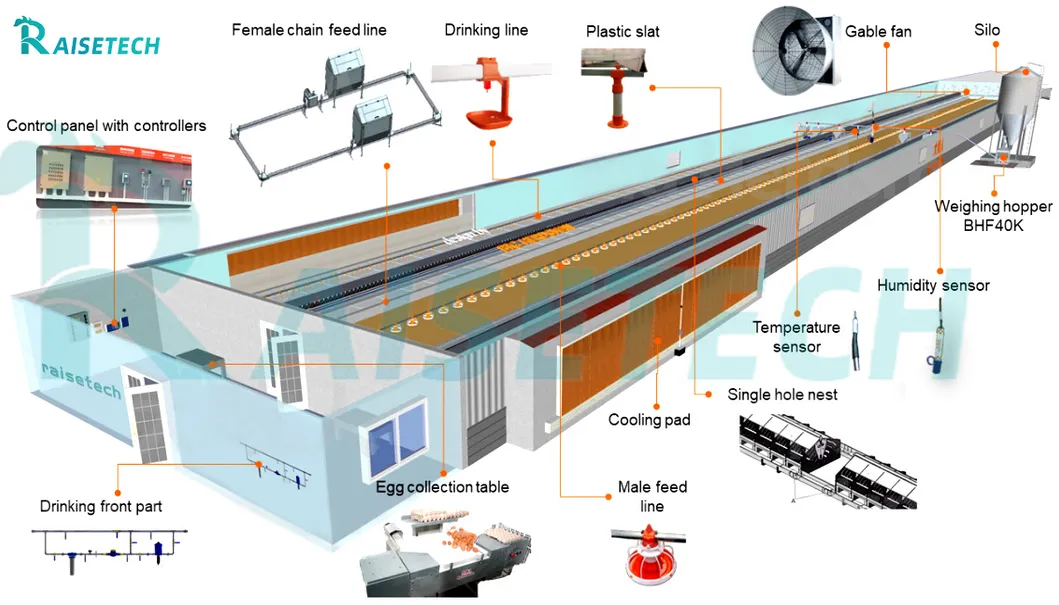

Raisetech breeder flat raising system including the following items:
1.main feeding line
2.weighing system
3.pan and chain feeding system
4.nipple drinking system
5.auto-nest system
6.environmental control system(fan,air inlet,cooling pad,panel door,heater,controller)
7.lighting system
8.power system
Standard products specification
Model | Size(m) | Brids/House | Main Feeding System | Nipple Drinking System | Weighing System | C&P Feeding System | Lighting System | Power System | EC system |
RFBB 12015 | 120*15 | Female10815+Male 1082(Male:Female=1:10) | 1 | 4 | 1 | 3loops(Female1 Line Male | 1 | 1 | 1 |

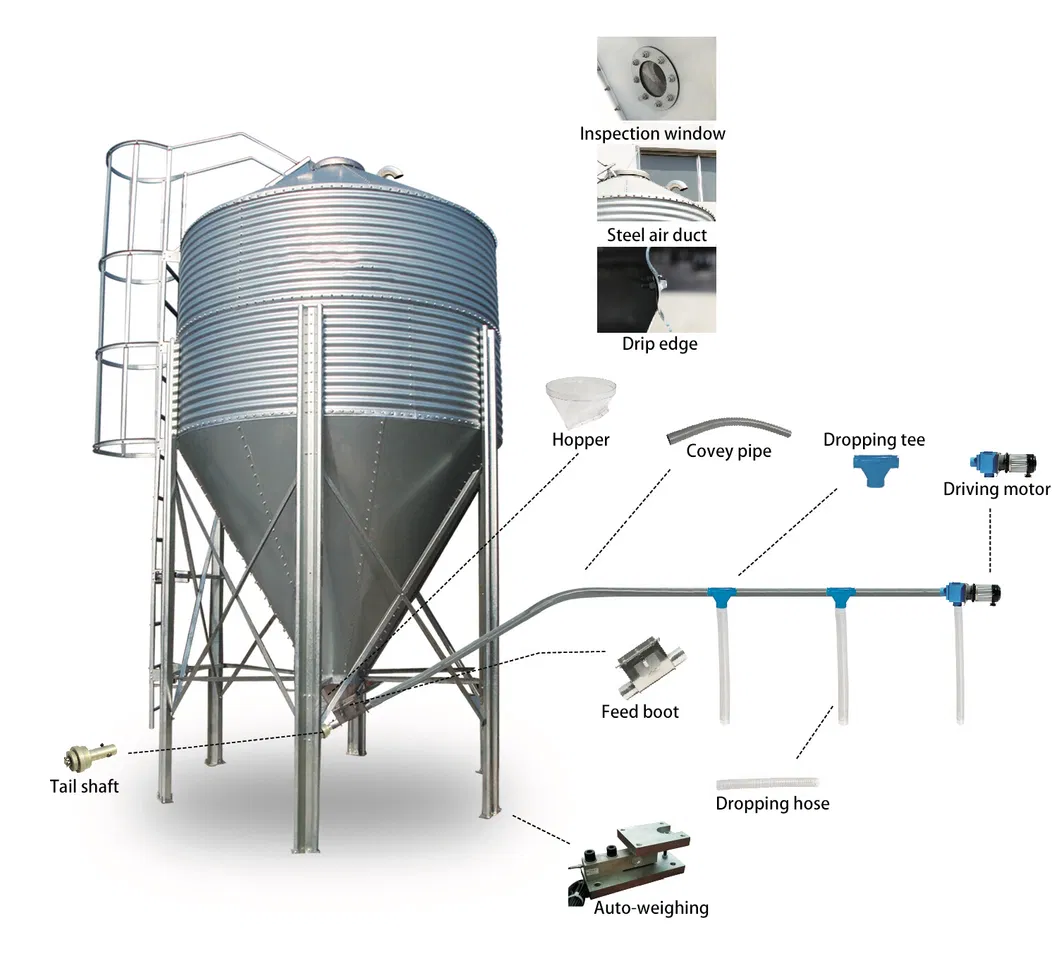

1.Main Feeding Line
1. Silo material is hot-dip galvanized steel. Zinc thickness: 275g/m 2 with actual capacity 90%. Feeding density 0.65 tons/m3, Anti-corrosion; 2.Materials: Separate filling and dispensing equipment,transport capacity: 73 kg/min. Outer tube 110mm*2mm,,Auger:90mm, 3.Composed of TS Corner,TS chain,Feed Trough,Drive Motor(1.5KW/2.2KW),Feed Hopper(65kg),Single layer feeding can be achieved.Auto-deliver feed quickly and evenly to the feeding area, reducing the time for manual
operation and the situation of feed waste, improving the production efficiency and quality of chicken rearing.
1. Silo material is hot-dip galvanized steel. Zinc thickness: 275g/m 2 with actual capacity 90%. Feeding density 0.65 tons/m3, Anti-corrosion; 2.Materials: Separate filling and dispensing equipment,transport capacity: 73 kg/min. Outer tube 110mm*2mm,,Auger:90mm, 3.Composed of TS Corner,TS chain,Feed Trough,Drive Motor(1.5KW/2.2KW),Feed Hopper(65kg),Single layer feeding can be achieved.Auto-deliver feed quickly and evenly to the feeding area, reducing the time for manual
operation and the situation of feed waste, improving the production efficiency and quality of chicken rearing.

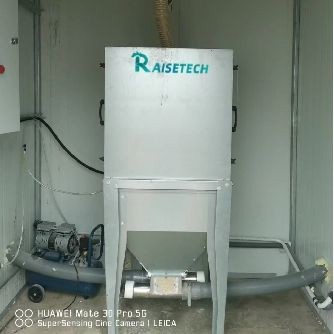

2,Weighing System
The electronic batch weighing system is connected with the feed transport system, which can realize the far transport and accurate feeding of the central silo, daily silo and the house feed hopper.
Control system: touch screen +PLC programming system. could design the program according the customer needs. Could connect with PC and mobile phone for remote control.

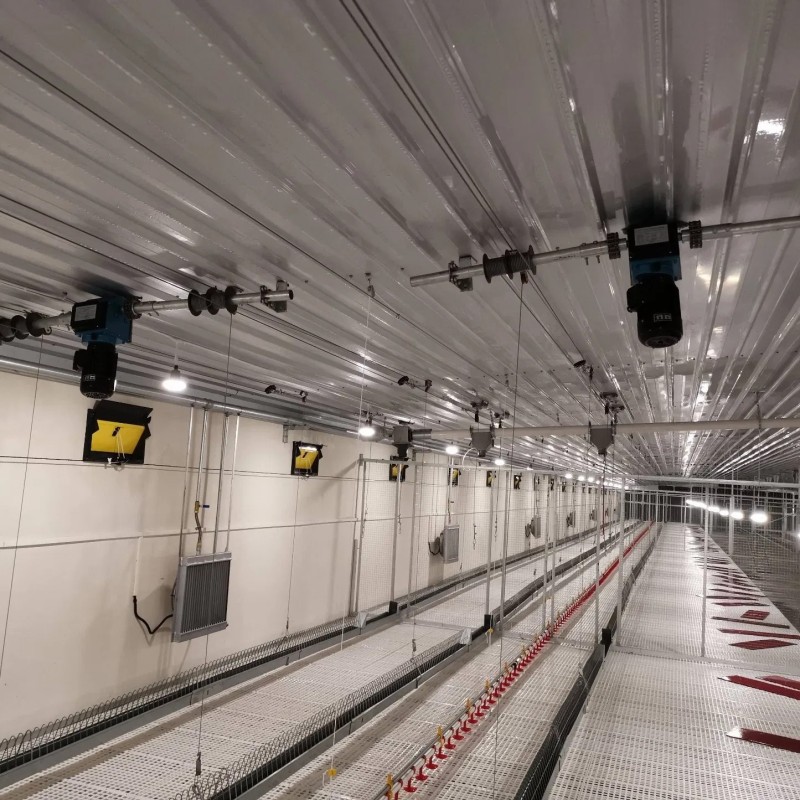

3.Pan and chain feeding system

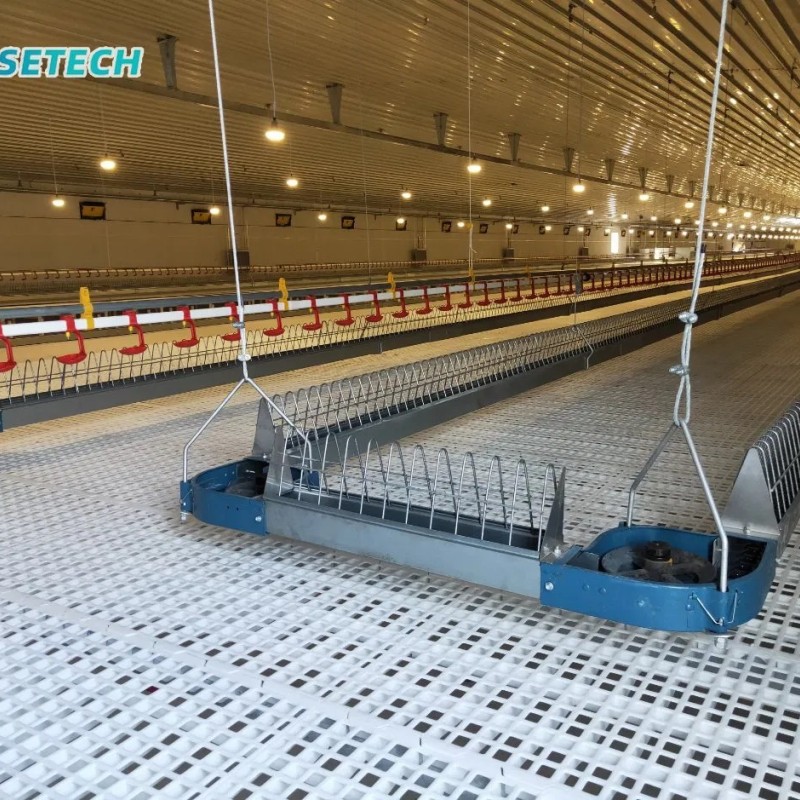

*Famale chain feeding system
The chain feeding system is mainly equipped with: feed box, drive equipment, feed trough, angler, chain piece, grille, lifting frame, etc. The chain pieces are connected into a chain, and a belt of chain is placed in the feed trough. The drive equipment is turned on to pull the chain to push the feed in the feed box into the feed trough. It not only has the characteristics of fast and uniform feeding, stable operation, not easy to wear, simple operation, convenient maintenance, saving feed and labor, reducing the number of personnel walking and the probability of feed contamination, but also can quickly transport feed to the feed trough, and can ensure a reasonable feeding position. At the same time, the height can be adjusted at any time according to the age of the chickens, providing a comfortable feeding environment for the chickens.
*Famale chain feeding system
The chain feeding system is mainly equipped with: feed box, drive equipment, feed trough, angler, chain piece, grille, lifting frame, etc. The chain pieces are connected into a chain, and a belt of chain is placed in the feed trough. The drive equipment is turned on to pull the chain to push the feed in the feed box into the feed trough. It not only has the characteristics of fast and uniform feeding, stable operation, not easy to wear, simple operation, convenient maintenance, saving feed and labor, reducing the number of personnel walking and the probability of feed contamination, but also can quickly transport feed to the feed trough, and can ensure a reasonable feeding position. At the same time, the height can be adjusted at any time according to the age of the chickens, providing a comfortable feeding environment for the chickens.

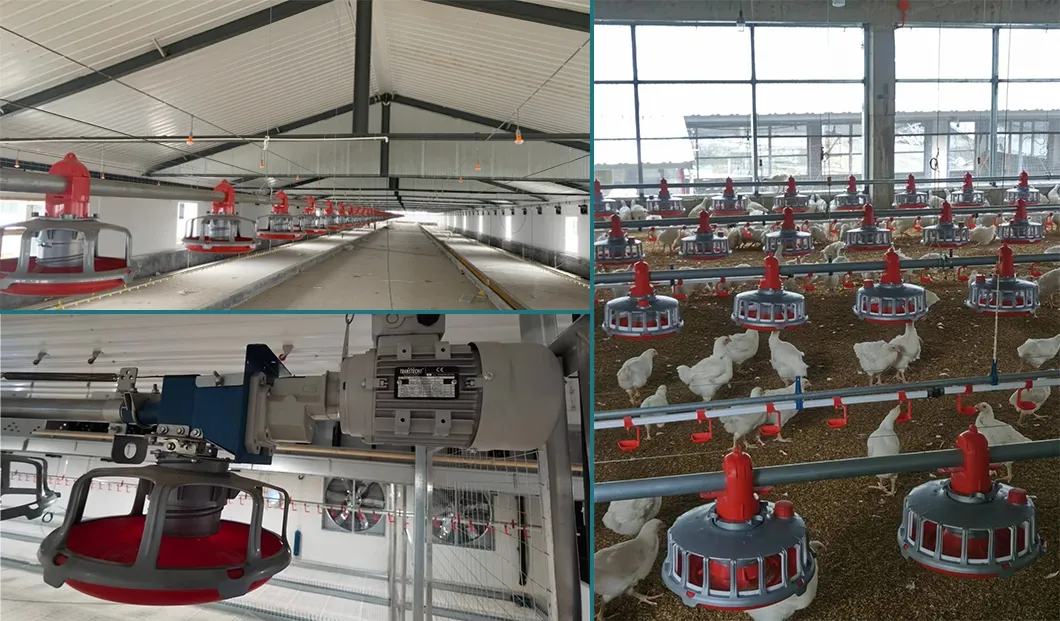

*Male Pan Feeding System
Transtecno drive unit. the best auger drive unit brand
TS auger, the best auger brand
370mm, 8 grill pan. especially designed for male.
The pan weight is 1103g, used PP raw material
Large diameter (37.5cm) grille design, to meet more chicken space.
Feed level adjustable to make the feeding more uniform.
Fixed buckle prevents the feed pan from swinging
TS auger, the best auger brand
370mm, 8 grill pan. especially designed for male.
The pan weight is 1103g, used PP raw material
Large diameter (37.5cm) grille design, to meet more chicken space.
Feed level adjustable to make the feeding more uniform.
Fixed buckle prevents the feed pan from swinging

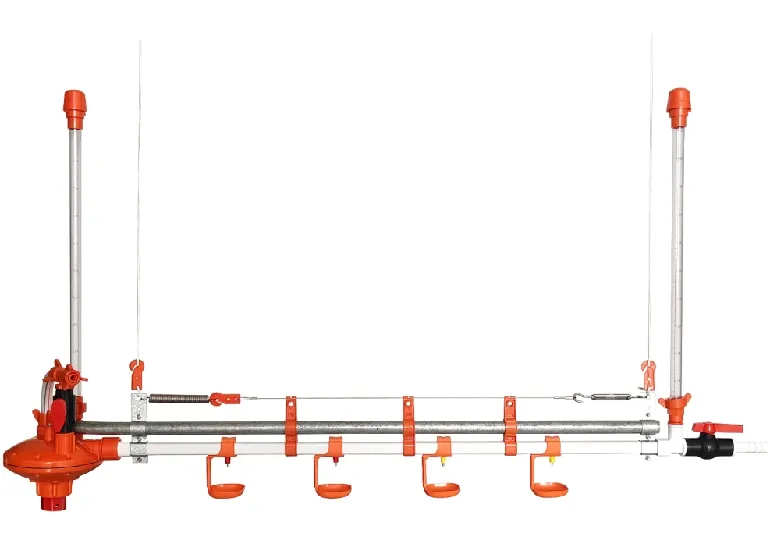

4.Nipple Drinking System
*The front system
*Main inlet pipe
*Regulator valve
*Balance pipe&square tube
*Drinking nipple&Drip cup
*Suspension accessories for drinking line
*Steel wire rope
*Main inlet pipe
*Regulator valve
*Balance pipe&square tube
*Drinking nipple&Drip cup
*Suspension accessories for drinking line
*Steel wire rope

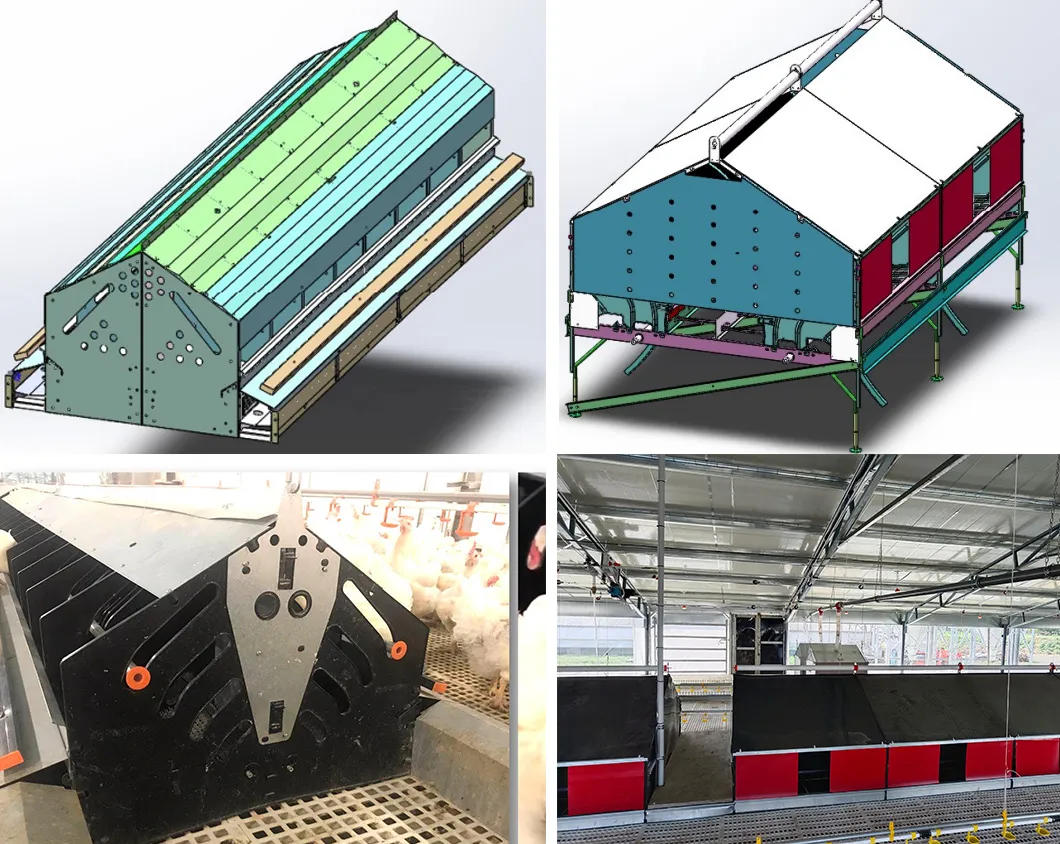

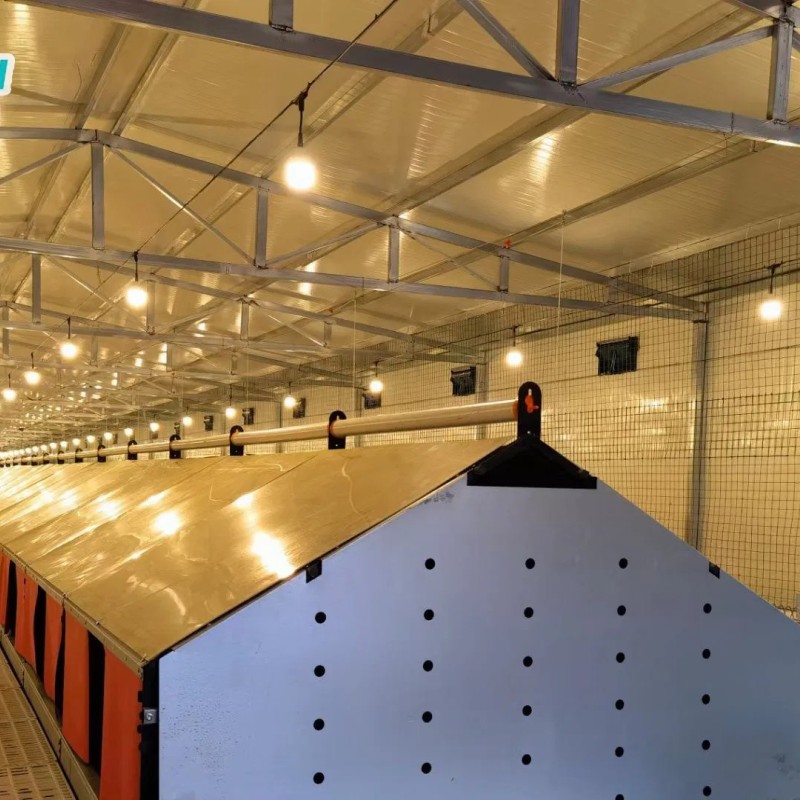

5.auto-nest system
| Single hole nest | Group nest | |
| Breeding mode | High-Low- High | High-Low-High and Low-High-Low. |
| Purpose | broiler breeders floor raising | floor breeding of broiler breeders, layers and layer breeders |
| Outside dimension | 2240*915*660mm | 2300*1610*1600 mm |
| Holes dimension | 320*280mm | 1140*490mm |
| Capacity | 88 chickens | 210 chickens |
 | ||
6.Environmental control system

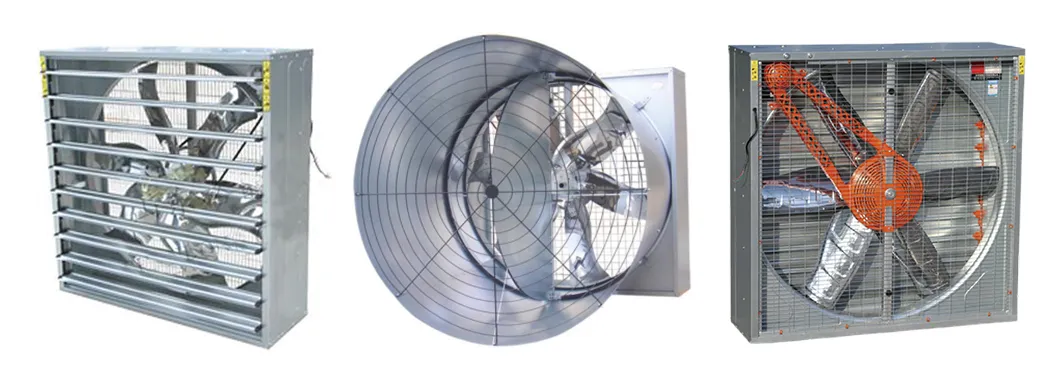

*Exhaust Fan.
The fan blades are made of high quality 304 stainless steel ,large air volume,no
deformation,no fracture,no rust,beautiful
deformation,no fracture,no rust,beautiful

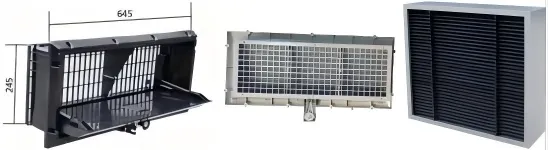

Anti-UV ingredients are added to the raw material ,strong anti-againg,long
service life.Better sealing,flexable opening,and anti-bird net at the air inlet. A pulley device is used on the air inlet doors to reduce friction and enhance the rope serive life.
service life.Better sealing,flexable opening,and anti-bird net at the air inlet. A pulley device is used on the air inlet doors to reduce friction and enhance the rope serive life.

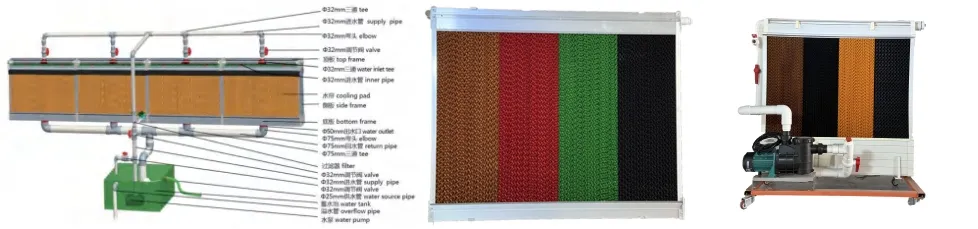

*cooling pad
It's the most economical and effective cooling measure in summer.
2,Reasonable structure,stable running ,high efficiency

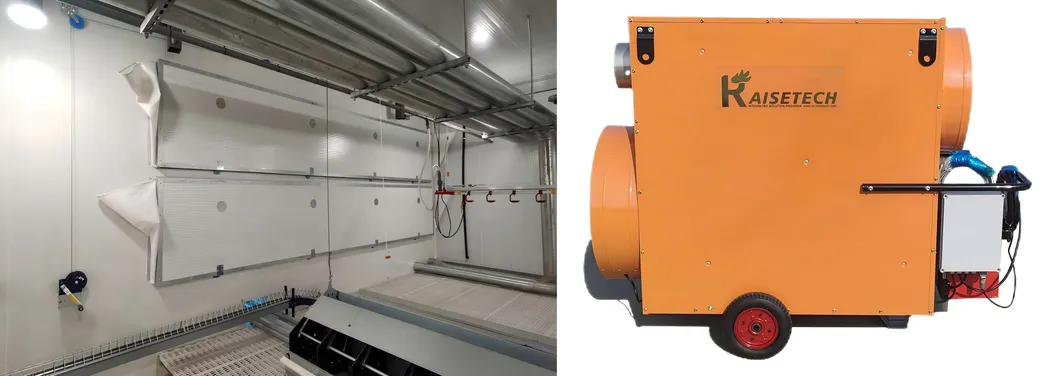

The panel door is made of 50mm PU board. Good heat insulation. Drived by electric winch with rack.Good sealing performance
*Heater
After setting,burner would automatically start on, fire,supply airand stop,keep steady temperature. Save large labor and financial
| Model | Rated heat output | Oil consumption(kg/h) | blower capacity(m3/h) | Electric power(kw) | outlet dia(mm) | Dimension(mm) | |||
| kcal/h | KW | length | width | high | |||||
| FSHY-5 | 5x10^4 | 60 | 2.3-5 | 11000 | 0.7 | 520 | 1780 | 840 | 1380 |

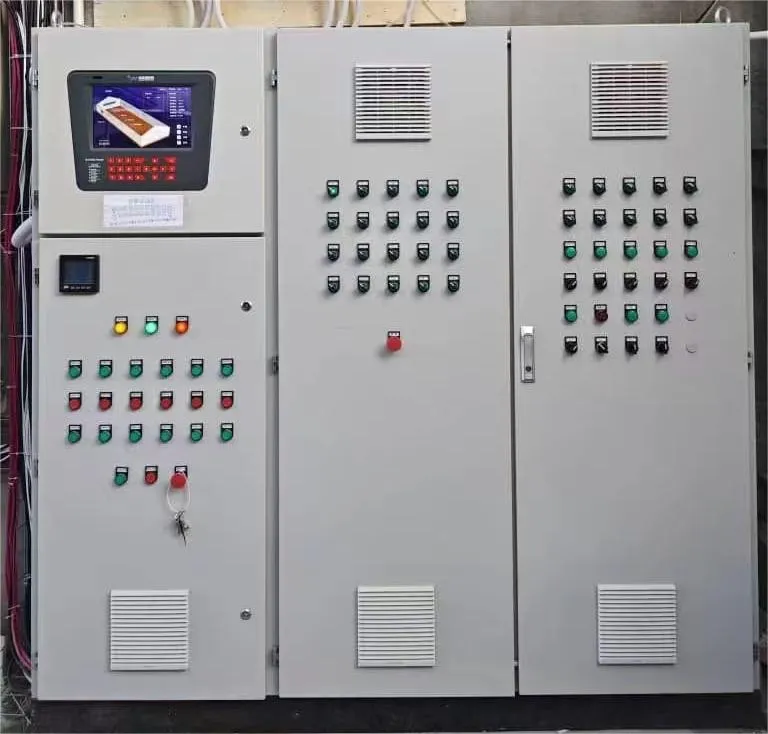

*Controller.
Controlling scope :Drinking, feeding ,manure removing ,fan ,cooling pad ,air inlet ,roll curtain ,spraying device ,heating device ,light modular and alarm system etc.
7.Lighting System
Chickens'eyes are different from human's,
the light we perceive is a part of the electro- magnetic spectrum our eyes can detect,known as the visible spectrum
Chickens'eyes are different from human's,
the light we perceive is a part of the electro- magnetic spectrum our eyes can detect,known as the visible spectrum
8.Electric Control System.
The power system of chicken house collects environmental information in real time through intelligent sensors, users can control the environmental situation through the environmental controller.realizes automatic control and management, greatly reduces the workload of farmers. Easy to operate.
Raisetech CO,.LTD is an Intelligent Agriculture IndustriaChain Solution Provider from China.We provide complete project design.focus on three parts.Poultry Equipment production.Feed Mill Equipmentproduction and Steel Silo production.Headquartered inHongkong,Sales Center is in Shanghai.Raisetech oper-ates three production base.
1,Poultry farm equipment manufacturing base is in qingdao city,shandong province. Including broiler/breed.er floor raising, broiler/layer/pullet cage raising.
2,Feed mill equipment manufacturing base is in Liyang and Nanjing city jiangsu province
3,Steel silo equipment manufacturing base is in Yangzhou city.jiangsu province.We can serve customized design from layout,equipment manufacture,installation, commissioning up to safe andqualified after-sales service.
Our vision is to strive to be a professional enterprise of intelligence agriculture equipment and engineering ser.vice.so as to help customers achieve modern farms with sustainable income and improve farm efficiency.come anajoin us. Get project design in 24 hours now.
Q:The Mini Order?
A: We can accept only one piece.
Q:About sample?
A:The buyer should offer the cost and freight. lf making an big then, we will turn back allafter confirm the order.
Q:About payment terms?
A:100% T/T as deposit, if the order costs more than USD5000, then 30% T/T as depositbalance after B/L copy. We also can accept L/C based on the quantity.
Q:How long does it take to receive my order?
A:About 25 working days after we confirm the payment. 10 working days for sampleorder.
Q:What basic information should be provided when making an inquiry?
A:1)Quantity. 2) Maximum lifting weight.3) Lifting height.4)Max. bearing capacity 5)Other request (such as logo printing, custom packaging etc) if you have
Q:About warranty time
A:We provide one year's warranty. Q:About price A:we have different price based on different details and your requirements. And weprovide OEM.
WELCOME for more details and do hope we can have a cooperation!
